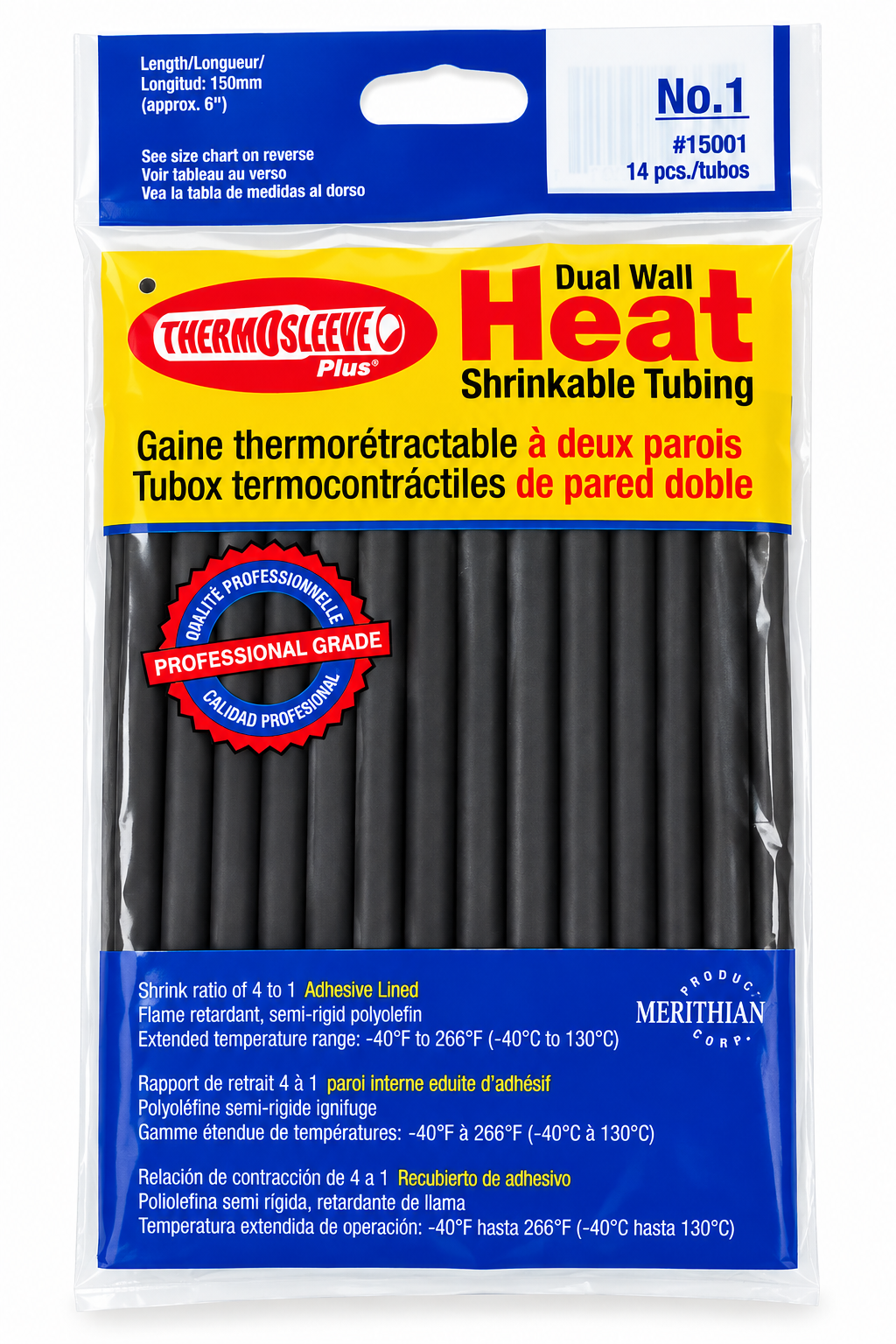

ThermOsleeve Plus 0.225" Dual Wall Heat Shrink Tubing, 6" Length, 14-Piece, 4:1 Shrink Ratio
ThermOsleeve Plus 0.225" Dual Wall Heat Shrink Tubing, 6" Length, 14-Piece, 4:1 Shrink Ratio
Impossible de charger la disponibilité du service de retrait
Protect and seal automotive wiring, electrical connections, splices and cable assemblies with ThermOsleeve Plus semi-rigid dual wall heat shrink tubing. Designed for demanding automotive and electrical applications, ThermOsleeve Plus combines a durable flame-retardant polyolefin outer jacket with a specially formulated adhesive inner layer.
When heated, the adhesive lining melts and flows around the connection, creating an effective barrier against moisture, automotive fluids and water wicking. The 4:1 shrink ratio allows the tubing to accommodate a wide range of connection sizes while providing a secure, conforming seal.
Key Features
- 0.225" Original Diameter – Ideal for smaller wires, connections and harnesses
- 6" Lengths – Convenient pre-cut sections for installation and repair
- 14-Piece Pack – Ready-to-use convenience pack
- 4:1 Shrink Ratio – Accommodates a wide range of connection sizes
- Dual Wall Construction – Durable outer jacket with adhesive-lined inner wall
- Semi-Rigid Polyolefin Jacket – Provides durable mechanical protection
- Flame Retardant – Designed for demanding electrical and automotive applications
- Adhesive Lining – Melts when heated to help create an environmental seal
- Temperature Range: -40°C to 130°C (-40°F to 266°F)
- UL 224 Recognized, 600V, 125°C
- RoHS Compliant
Ideal Applications
ThermOsleeve Plus is well suited for:
- Automotive wiring harnesses
- Wire splices and electrical connections
- Battery and charging-system wiring
- Automotive electrical repairs
- Cable protection and insulation
- Moisture-resistant electrical connections
- Industrial wiring applications
- Harness sealing and protection
Specifications
| Specification | Details |
|---|---|
| Product | ThermOsleeve Plus |
| Type | Semi-Rigid Dual Wall Heat Shrink Tubing |
| Original Diameter | 0.225" |
| Length | 6" |
| Quantity | 14 Pieces |
| Shrink Ratio | 4:1 |
| Material | Flame-Retardant Polyolefin |
| Inner Layer | Specially Formulated Adhesive |
| Temperature Range | -40°C to 130°C (-40°F to 266°F) |
| Voltage Rating | 600V |
| UL Rating | UL 224, 125°C |
| Compliance | RoHS Compliant |
| Color | Black |
Why Choose ThermOsleeve Plus?
The combination of a 4:1 shrink ratio, semi-rigid construction and adhesive-lined dual wall design makes ThermOsleeve Plus an excellent choice when standard single-wall heat shrink does not provide enough environmental protection. The adhesive inner layer helps seal the connection against moisture and automotive fluids while the outer polyolefin jacket provides durable protection.
Order ThermOsleeve Plus 0.225" dual wall heat shrink tubing from E.S.N Tools for professional automotive and electrical applications.
